Description

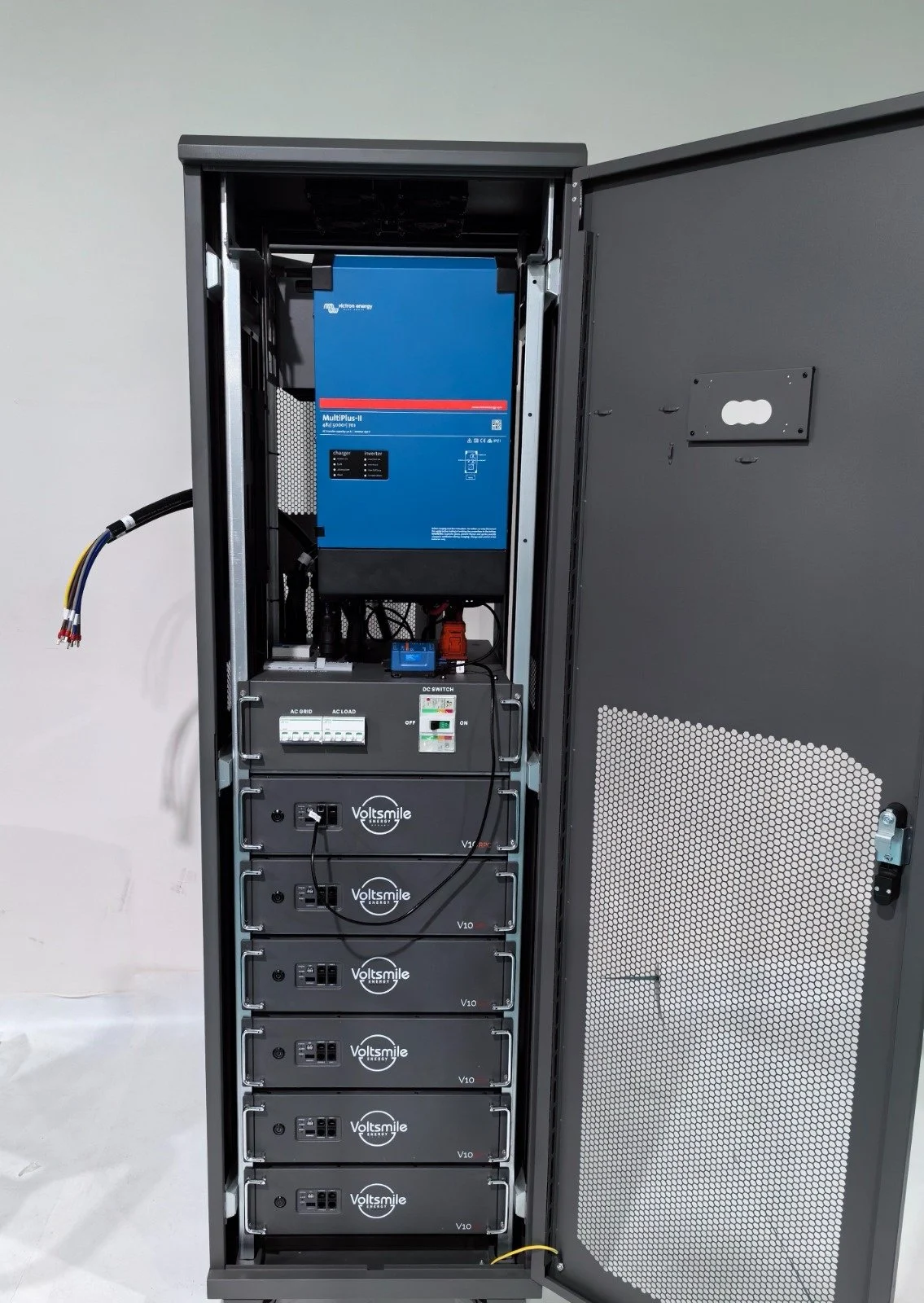

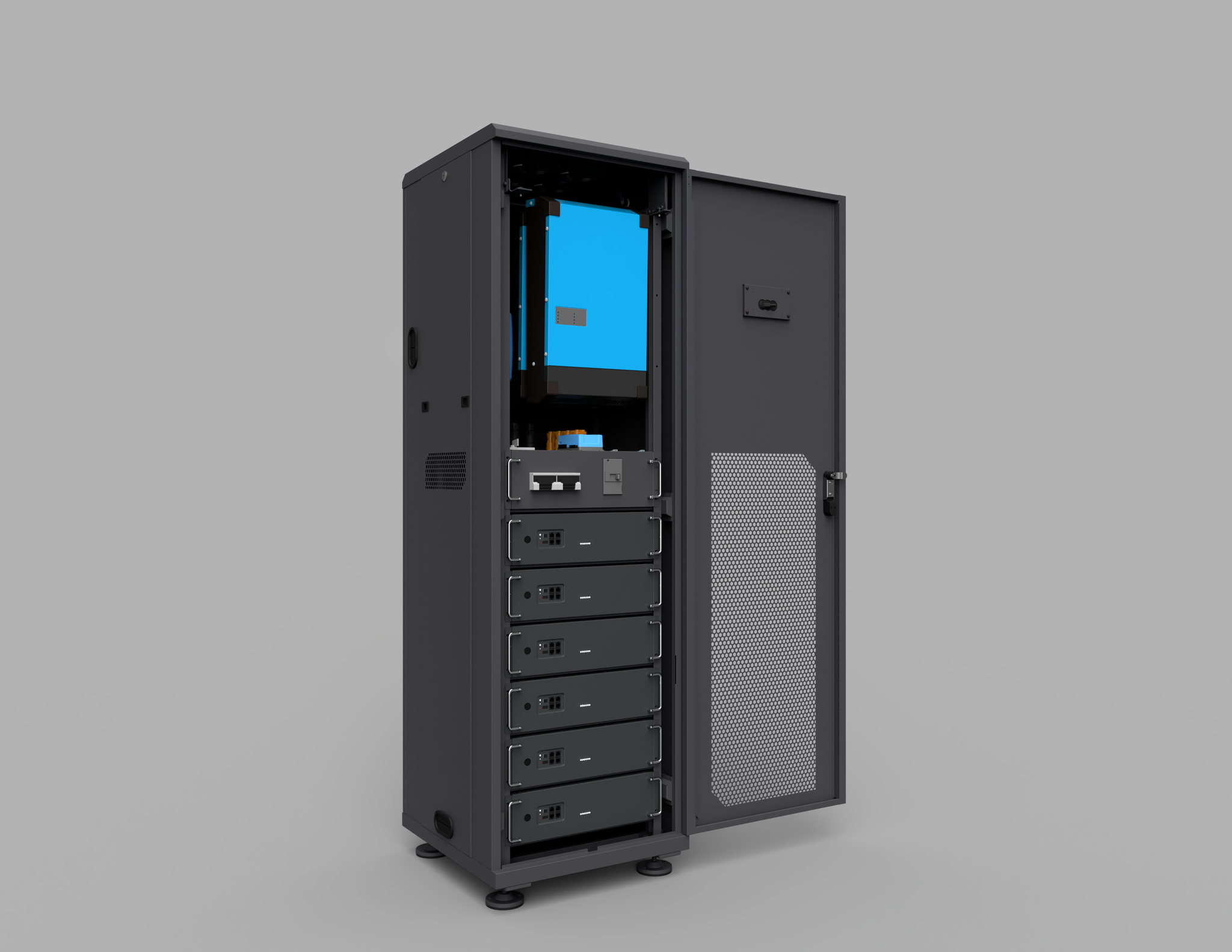

Three-phase all-in-one cabinet 9Kva - 10, 2 kwh

This set includes:

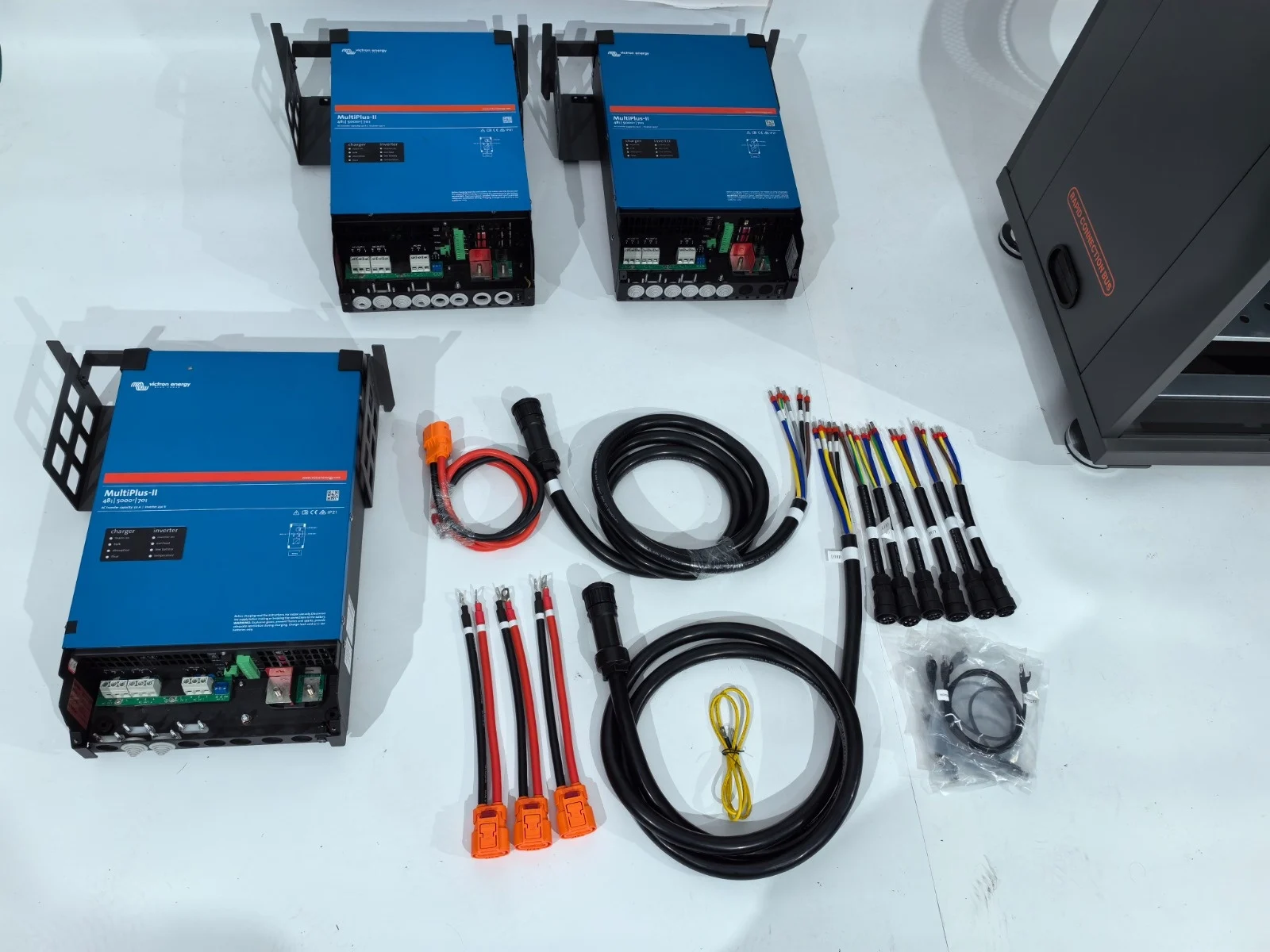

3x Victron MultiPlus-II 48/3000/35-32

1x Cerbo GX with GX touch 50 screen

2x Voltsmile V10 RPC 51.2V, 5.12kwh

1x 19inch all-in-one cabinet with accessories kit

The Three Phase 9Kva All-in-One Cabinet is designed for users looking for a complete, efficient and flexible energy storage and management solution. This system is ideal for both home use and available in two inverter capacities 9 or 15 Kva. It incorporates internally the Victron ESS (Energy Storage System) and offers many advanced features to make optimal use of self-generated energy, even in situations with power outages or varying grid voltages.

A Smartly Designed and Easy to Install System

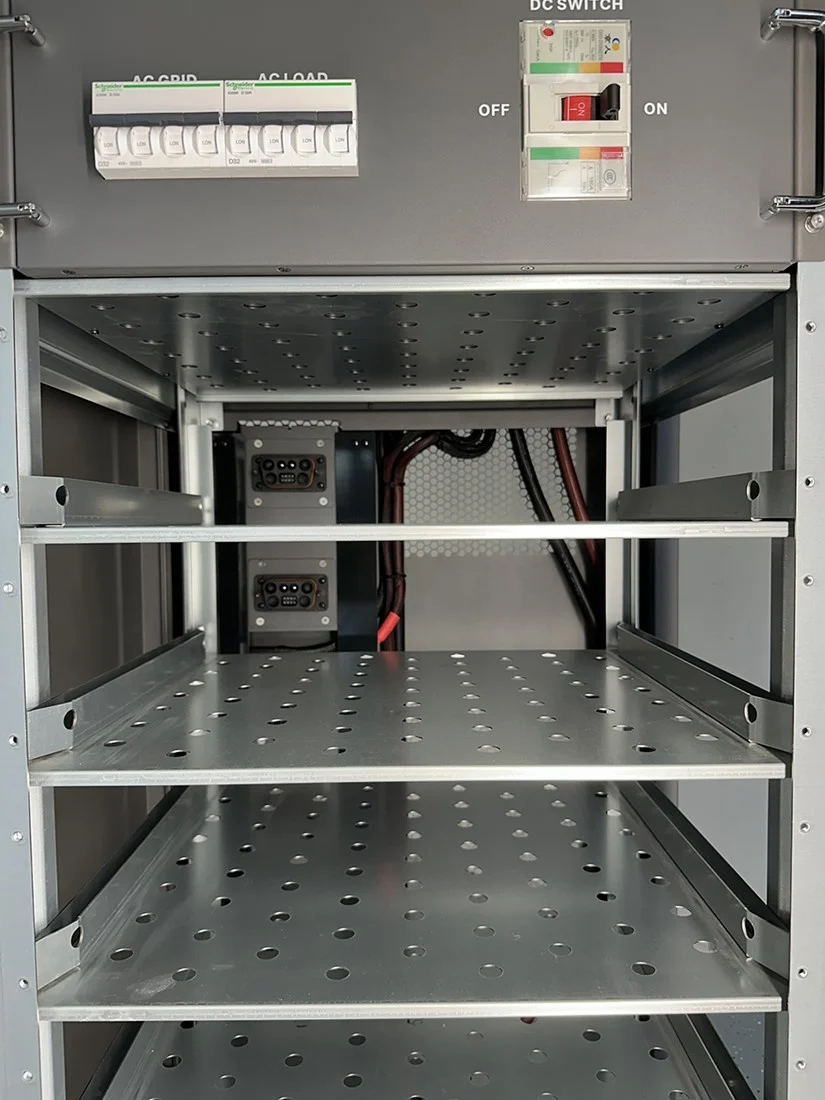

The All-in-One Cabinet has a smart distribution system that keeps both AC and DC cabling orderly and uncluttered. Thanks to the smart design, only two 5-wire AC cables emerge from the left exterior of the cabinet, making installation easy. These AC cables connect the cabinet to the meter box, and an installer can easily carry this out. The rugged cabinet accommodates six RPC V10 Classic batteries, giving you a battery capacity of about 30 kWh. For users who need more storage capacity, the system can be easily scaled up. By connecting two cabinets in parallel, an impressive battery capacity of 60 kWh can be achieved with an inverter power of 30 kVA. Furthermore, with these batteries, battery capacity can be expanded up to 250 kWh, making this system flexible for growing energy needs.

Powerful and Flexible Energy Supply

The cabinet contains three Victron MultiPlus-II inverters and delivers a power of 9 or 15 kVA, with monitoring via a Cerbo GX and GX Touch 50 display.

The system is suitable for grid-connected and off-grid use, with advanced features such as:

• Peak Shaving: Avoids costly grid reinforcement by supplying peak consumption from batteries.
• Dynamic energy cost management: Responds to variable energy prices and reduces costs.
• Grid Control: Prevents overloading by optimising mains power settings.
• Backup in case of power failure: Switches on within 20 ms for uninterrupted power supply.
• Off-grid capabilities: Functions without grid connection and optimises solar energy.
• High mains voltage protection: Prevents shutdown at high voltage by sending surplus to batteries.
• Control external devices: Integrates smart devices such as charging stations and heating systems.
• Compatibility with all PV inverters: Works with all solar panels and inverters.

Cost savings and sustainability

• Prevents unnecessary feed-in fees and makes VAT refund possible.
• Saves on network costs by avoiding consumption peaks and grid aggravation.
• Ensures stable power supply, protects equipment and extends service life.
